| Type |
Electrically Operated |
| Control Signal |
4-20 mA DC |
| Power Supply |
24 VAC, 50/60 Hz/24 Vdc, 230 VAC through separate isolation transformer module |
| Maximum Torque |
15 Nm |
| Time of Operation |
Electrical 45 seconds for 90 deg rotation, Spring Return Not more than 20 seconds |
| Position Feedback |
2-10 VDC |
| Easy Mount |

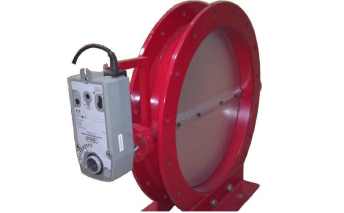

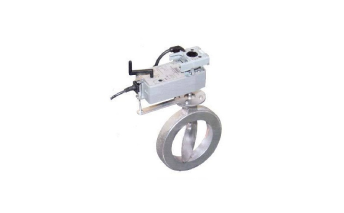

Motor can be directly mounted on any Quarter turn valve or damper shaft without any complicated linkages or bracket. Can be easily fitted by the user on a round or square valve shaft of sizes between 10 mm to 25 mm through a flexible spindle clamp |
| Manual Override |
Provided with a manual cranking lever for operating the valve manually in case of power failure can also be done with the help of standard 4 mm allen key |
| Easy Lock |
Mechanical Lock for locking the valve disc in any desired position when the motor is in manual mode. Declutches automatically on resumption of power supply |
| Spring Return Feature |
Motor automatically goes to the close or open position as selected by the user in case of power failure due to the built-in spring return mechanism |
| Zero Span Adjustment |
Due to smart zero span feature, motor automatically adjusts its input with respect to the travel span set by adjustable mechanical stopper |
| Direction of Rotation |
Clockwise/Anticlockwise electronically reversible by user through direction switch on front facia. |
| Ambient Tem. Limits |
-30 deg to 60 deg C |
| Relative Humidity |
95% |
| Product weight |
1.95 kg |
